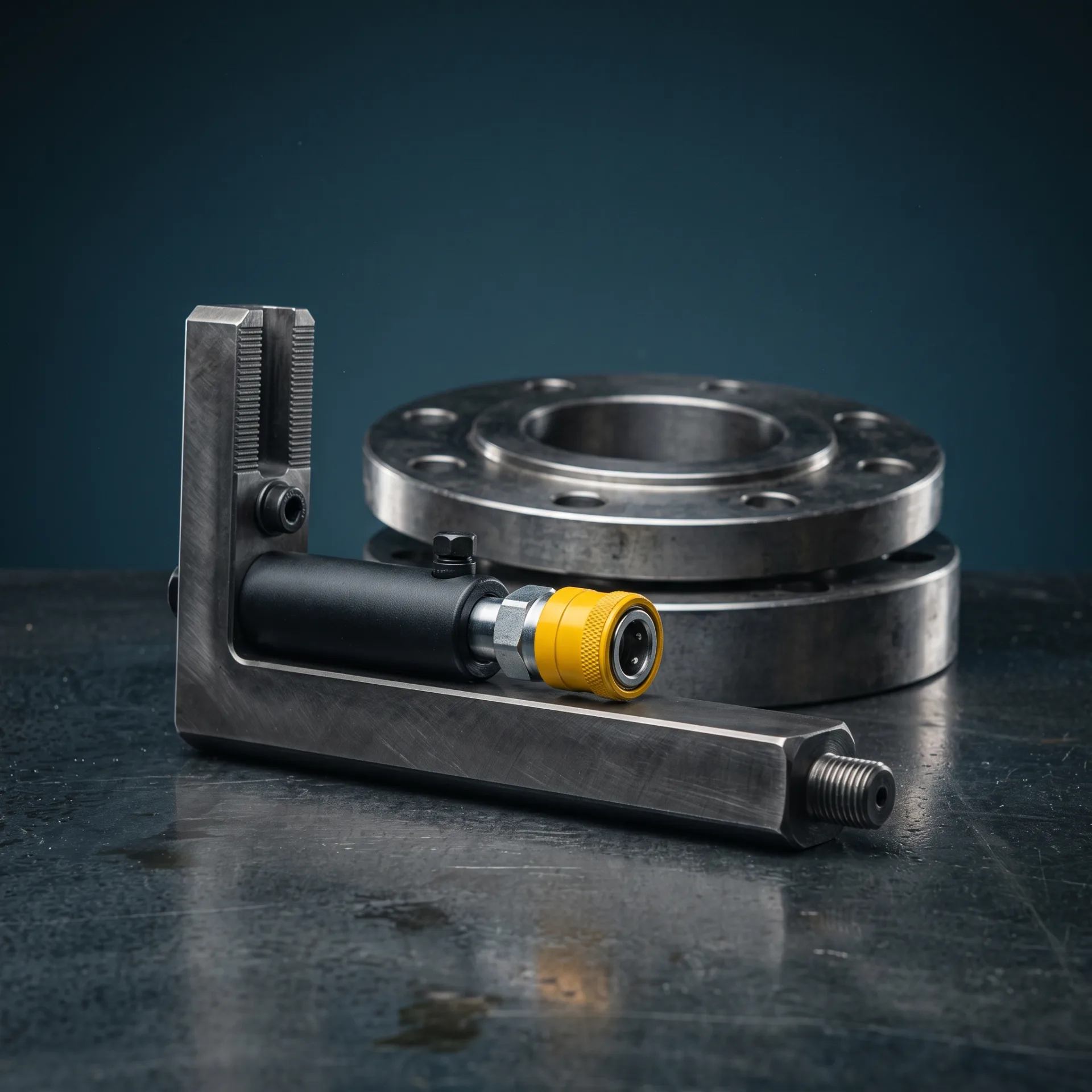

RFA-10

Hydraulic Flange Alignment Tool

Aligns misaligned flanges radially by up to ±10 mm. The hook passes through the bolt hole for one-person operation.

• StockMade to order
• Lead time2–4 weeks

Alignment force

10 t

Correction

±10 mm

Bolt hole

≥ 22 mm

Working pressure

700 bar
